Please pardon a brief detour from my passion for Columbia Pike to my passion for cycling.

I wanted two highlight two questions and answers from today's DES Snow and Streets Chat on Facebook:

Q by Me: Arlington often talks about how bicycling is an important part of our transportation network, and yet our bicycling infrastructure rarely if ever gets plowed, even major cycling thoroughfares like the Custis trail that continue to see hundreds of riders a day despite the weather. Minneapolis manages to keep their bike infrastructure plowed. When will Arlington?

A: Currently there are no immediate plans to plow or treat primary commuting bike trails, but our planners, Department of Parks and Recreation and DES operations staff continue to strategize how to improve the bike commute. The County will be looking to coordinate with the Northern Virginia Regional Park Authority for priority to treat the WO&D Trail, which is not maintained by Arlington.

AND

Q by MB: I have to say that I'm pretty disappointed by DES' inaction on plowing our primary trails. As people within DES can tell you, thousands of Arlingtonians use those trails every day to get to work. By failing to plow the trails, DES puts more people onto the streets in cars. Is that really what you want, during a snow event?

A: As previously asked by Chris, our planners, Department of Parks and Recreation and DES operations staff continue to strategize how to improve the bike commute. There are many significant safety and environmental concerns for bikers and our trails that we have and are attempting to find the best solution.

This is one of many reasons Arlington continues to languish at Silver as a Bicycle Friendly Community and it directly contradicts the policy laid out in the Master Transportation Plan:

Snow Removal – Snow stored on bike lanes or shared‐use paths impedes bicycling and walking. Program elements include:
• Remove all snow from bike lanes.
• Clear snow from primary shared‐use paths (including the I‐66/Custis Trail and the Route 110 Trail) and make sure that snow banks do not block paths where they cross plowed roads.
• Primarily recreational shared‐use paths, including Donaldson Run Trail and Lubber Run Trail, should be left unplowed for skiing and other winter use.

The Bicycle Advisory Commission has brought this up regularly with staff over the course of several years and seen no progress. If Arlington is truly serious about walking and cycling as legitimate forms of transportation in the County they need to start treating walking and cycling infrastructure as transportation infrastructure not recreational amenities.  If you agree, please take a moment to let the County Board know.

The first weekend in November (the 3rd and 4th), VDOT will be temporarily closing a small section of Columbia Pike that runs underneath the Washington Blvd bridge so that a portion of that bridge can be safely demolished (weather permitting).  The closure will begin late Friday night and normal traffic flow will return by 4:30am Monday morning.  During this time, a number of detours will be in effect.  Columbia Pike traffic will be routed up temporary ramps to a temporary at-grade intersection with Washington Blvd with a temporary stop light.  In addition traffic heading North/West on Washington Blvd (toward Clarendon) that is trying to go Westbound on Columbia Pike will be detoured up to the Second Street exit and shunted through the Penrose neighborhood down South Courthouse Road.

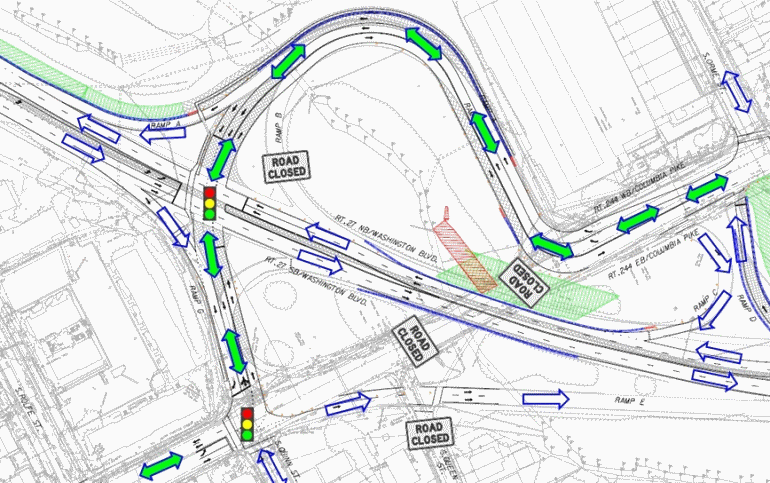

Columbia Pike Detour:

Green arrows indicate the detour for Columbia Pike and Blue arrows indicate existing movements that will remain open during this work.

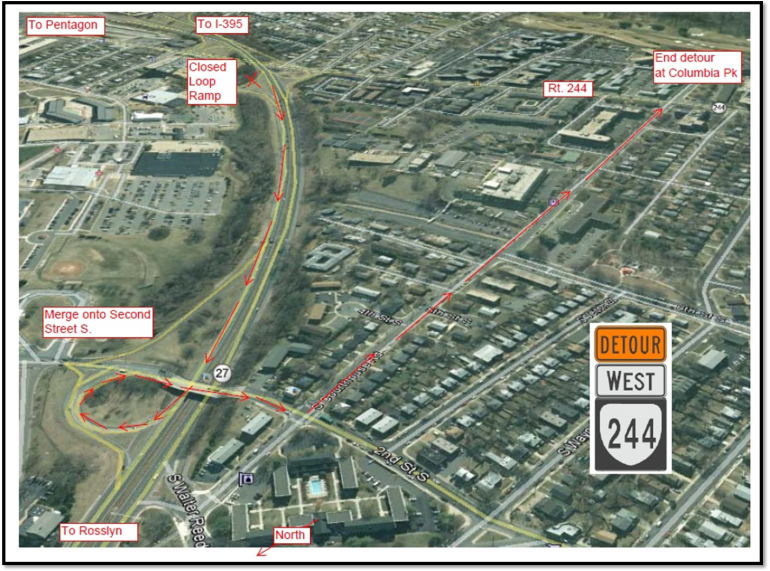

N/W-bound Washington Blvd to W-bound Columbia Pike Detour:

VDOT says that all modes will be accommodated through the detour (cars, bikes and pedestrians. Access to Columbia Pike through South Queen Street will be closed during the weekend, all traffic in and out of the Arlington View will have to be via South Quinn Street.

For more information on the Route 27/244 Interchange Project that is rebuilding the Washington Blvd bridge over Columbia Pike, see the project webpage.

Their has been significant activity in the County permitting system relating to the long dormant Columbia Place project, including new building permit applications and approval progress on others. One of the first projects approved under the Columbia Pike Form Based Code back in 2009, Columbia Place ran afoul of the financial crisis and did not begin construction. There is no word on when construction might begin, but the activity certainly bodes well for movement on the project.

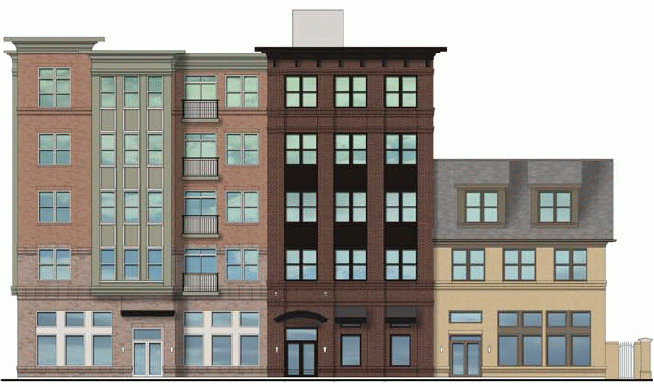

The project consists of 2,960 square feet of retail, 14 residential condo units and 8 townhouses on the empty parcel of land behind the Columbia Pike Rite Aid. The project will begin the construction of the missing segment of 11th St between Walter Reed Drive and Edgewood Street; at the completion of this project, 11th St will be one way eastbound. When and if the Rite Aid building redevelops under the Form Based Code, that project will provide additional land to finish the street resulting in a final 2-way cross section with parking on both side. The building heights vary from 5 stories at the corner of Walter Reed and 11th St down to 3.5 stories as the project approaches the surrounding neighborhood.

As with most Form Based Code projects, Columbia Place will result in significant streetscape improvements including 13ft sidewalks on Walter Reed, 19ft sidewalks on Edgewood and 14ft sidewalks on the new 11th St all with street trees. Any utilities along the edge of the project will be undergrounded and on-street parking will be added on Walter Reed Drive.

This is part II in a series on improving bikeplanner.org by updating the underlying OpenStreetMaps mapping data. See Part I for the background.

Adding Trails to Bikeplanner.org via OpenStreetMaps

Step 1 - Find a place that needs changing

For this tutorial, I'll add the trail through Rock Springs park which connects the broken piece of George Mason Drive between Yorktown Blvd and Little Falls Rd. As you can see in this bikeplanner.org screenshot - no trail:

Step 2 - Start the Editor

Same as our previous tutorial, open up OpenStreetMap.org and find the spot in question. Then we go to the edit dropdown and choose an editor - I recommend "Potlatch 2". You'll then have to setup an account - though you can login using many different accounts you may already have like a Google account or Yahoo account.

Step 3 - Draw the Trail

Go up to where the trail connects to the rest of the bike network (in this case, I'm starting from Little Falls Rd). Don't be afraid to zoom way in, it makes it easier to follow the aerial photography. Click on the road/trail that you're starting from and then either select an existing point where the intersection is, or if there isn't one add one by shift-clicking on the line to add it.

If potlatch hasn't already entered draw mode (connecting your mouse cursor to your select point by a red dotted line) then shift-click on your node and it will start to do so as shown in the following shot:

Now just keep clicking along the trail adding points to help it follow the contours as best you can. Don't worry if you need to pan around a bit, the tool is smart enough that if you click and drag to pan it doesn't put a point down. Don't worry too much if you have trouble following the exact contours of the trail, the most important thing is that it exist and that it connect the starting point and ending point of the trail so that bikeplanner.org can route on it!

When you get to the end, make sure your final point connects onto the next trail or road. The editor will show you nearby points on the road as you hover near it or change to a pen icon with a + next to it to indicate that it will add a new point on the existing road/trail.

Once you've made this final connection hit enter to exit drawing mode.

Step 4 - Set the Trail Properties

Now we need to tell it that the line we just drew was a trail and not a road, powerline or other random thing you can add to OpenStreetMaps. Click the large dropdown on the left, select Paths and then the appropriate option. In this case I'm selecting "footpath" as this particular trail is extremely narrow. For something like the Custis, Mount Vernon or Bluemont Juction Trail I would select "cycle path". Now add the name (if it has one) and set the pedestrian and cycle access options. I chose "allowed" for each. You should also set the surface to "paved" or "unpaved" accordingly. (especially if it's unpaved!!!) Now hit save and add an explanation.

Step 5 - Add Additional Connections

Often trails have many entrances and exits. Take the time to add them if possible. When I first looked at the OpenStreetMap data the Bluemont Junction Trail was there but was only connected at each end. Bikeplanner.org had no idea you could access it or use it to cross the various neighborhood streets that flank it. The Rock Spring Park Trail has two additional entrances right across from eachother. You can follow the same steps as above to add these additional portions of the trail. (don't forget to save!)

Step 6 - Wait

As before, bikeplanner.org updates their map data every two weeks so it may take a while before you see your changes reflected there. Now you're done!

In case you missed the announcement, there's a new tool for planning bike trips: bikeplanner.org

Unlike Google Maps, bikeplanner.org uses map data from OpenStreetMaps which is essentially the Wikipedia of map data.  Anyone can go in and add or update information on the map.  According to developer OpenPlans, bikeplanner.org refreshes their map data every two weeks.

If bikeplanner.org isn't giving you the results you expect, it is likely due to deficiencies in the underlying map data.  Editing OpenStreetMaps data isn't hard (and it can be kind of addictive) here's a tutorial on how to get started.

Before I start, a few caveats: I'm not affiliated with bikeplanner.org, OpenPlans, MobilityLab or really anyone involved with bikeplanner.org. The information I'm presenting has been pieced together from OpenStreetMap tutorials and this link outlining the OpenStreetMap data that OpenTripPlanner (which powers bikeplanner.org) pays attention to.

Adding Bike Lanes to Bikeplanner.org via OpenStreetMaps

Step 1 - Find a place that needs changing

For this tutorial, I'll add the missing the on-street bike lanes on South Arlington Mill Drive between South Walter Reed Drive and the entrance to the Windgate development. You can see that bikeplanner.org doesn't know about them by the lack of a green line on Arlington Mill Dr.

Step 2 - Start the Editor

So we open up OpenStreetMap.org and find the spot in question. Then we go to the edit dropdown and choose an editor - I recommend "Potlatch 2". You'll then have to setup an account - though you can login using many different accounts you may already have like a Google account or Yahoo account.

Step 3 - Make Your Changes

So now click on the road, in this case South Arlington Mill Drive and you'll see it highlight.

In this case, too much of the road is highlighted. If we set the bike lane options as-is, OpenStreetMaps will think there are bike lanes down the whole length of the road which is sadly not the case. So we need to "split" the road into segments. Often there will already be a point to split on as it will be an existing intersection. In this case, the entrance to the Windgate is not currently added to OpenStreetMaps as a road so we'll need to add the point. To do so, hold down shift and click on the spot on the road where you want to add the point. You'll see a new red dot added.

With that dot selected, click the scissors icon in the bottom right to "split" the road at that point. Now when you re-select the road only the part of the on one side of that point will be selected. Depending on what you're doing, you may need to do this at the other end as well.

Now with just the segment you desire selected, go to the cycling tab of the road segment and set the options for "Bicycles Permitted" and "bike lanes". In this case, I chose "Designated" for "Bicycles Permitted" option and "On-road Bike Lanes" for the "bike lanes" option. Finally, hit the "Save" button in the top left and describe the sort of changes you're making and you're done editing!

Step 4 - Wait

Within two weeks your update should appear on Bikeplanner.org

Doing More

You can also add trail connections, mark designated bike routes, mark roads that should be avoided by cyclists, mark bike lanes that only appear on one side or the other and many other pieces of data that bikeplanner.org uses. If people find this tutorial useful I'll definitely do one on adding trail connections. If you want to dive in yourself, the most vital link is this one which outlines how OpenTripPlanner uses OpenStreetMaps data for routing purposes. You should also spend some quality time in the rest of the OpenStreetMaps Wiki.

The following is a guest post by friend-of-the-blog and Columbia Pike advocate John Snyder.

Some folks seem to think that the way to preserve affordable housing on the Pike is to make it an undesirable place to live, so rents stay low. They worry that building the planned streetcar route on Columbia Pike will cause the loss of affordable housing. But their solution—to undermine the quality of life on the Pike—won’t preserve affordable housing. On the contrary, the streetcar system will be necessary to preserve affordable housing on the Pike.

Availability of high quality transit is not the only factor affecting the affordability of housing in Arlington. Over half of Arlington’s 6418 committed affordable units (3325) are in the Metro corridors, so good transit does not prevent affordable housing preservation. Nor does poor transit guarantee low rents. There are plenty of expensive places to live that have poor transit options. Note the hundreds of affordable apartments that are about to be re-developed in the Beauregard area of Alexandria, an area not served by Metro. Inflicting poor transit and traffic gridlock on the Pike neighborhoods will not preserve affordable housing.

For example, the former Concord Village Apartments (at Four Mile Run Drive and Walter Reed Drive) were converted into condos a few years ago, even though they are not on a Metro or streetcar line, and do not have bus service as good as that on the Pike. It was, and still is, very car dependent. Parking was, and still is, a big problem. Yet over 500 units of affordable housing were lost.

Other factors, like age of the buildings or internal business needs, affect a property owner’s decision whether to re-develop, or simply to raise the rent. Any property on the Pike in Arlington is within five miles of the job centers of DC, the Pentagon and Crystal City and thus can command higher rents than a similar building farther out. Even with the horrible traffic that will result from not building the streetcar line, an Arlington Pike resident will have to endure less of it than a Fairfax or Prince William resident, just by the Pike’s close-in location. Rents will go up. You just can’t hurt our neighborhoods enough to overcome their location advantage. Housing policy, not lack of transit, is necessary to preserve affordable housing.

The land use policy adopted decades ago on the Metro corridors—not the Metro itself--has been the primary anti-affordable housing driver in those areas. That policy allows high density development, encouraging re-development of land where affordable apartments once stood. Metro or not, zoning that allows larger buildings will encourage destruction of existing smaller buildings. The land use policy on the Pike is different, and is being reviewed with the specific goal of maintaining affordable housing. Additional density is being considered only as an incentive to preserve affordable units, but that density cannot be added (another 6000 apartments) without high capacity, high quality transit. Conventional buses are at maximum rush hour capacity now. Larger, articulated buses can only keep up with growing transit demand for 10 years, even if these 6000 additional apartments are never built.

Without the streetcar, the Pike neighborhoods simply can’t handle the density. The county’s best affordable housing preservation tool—bonus density—can’t be used. Without the streetcar, affordable housing on the Pike will be destroyed.

Recently the Washington Boulevard Trail project has come under criticism from the Urban Forestry Commission and the Penrose Neighborhood Association due to the number of trees that would be impacted by it's construction.  While the potential loss of trees is unfortunate, the myriad environmental, health and mobility benefits of the trail seem to have been lost in the shuffle.

Project Overview

The Washington Boulevard trail project would construct a new bike and pedestrian trail along the west side of Washington Boulevard between Route 50 and South Rolfe Street just shy of Columbia Pike by way of Towers Park. Phase I of the trail was completed in 2009 as part of a water main project and runs from Route 50 to the South Courthouse Rd exit of Washington Blvd.  Phase II will complete the trail and is currently at 90% design completion (the approximate area is outlined in yellow on the map).  The trail is identified as high-priority project in the Arlington Master Transportation Plan and would link the Arlington Boulevard Trail to planned bikeways coming to the east end of Columbia Pike and to a long-term project that would provide a new connection under I-395 via the Army Navy Country Club called the "Hoffman-Boston Connector".

Tree Removal

Because of the hilly nature of the land along Washington Blvd, approximately 2.7 acres of currently vegetated land would need to be disturbed during the construction process.  This results in 297 trees that could potentially be impacted, of those 186 (of which 6 are dead) would have to be removed, while the project would try to preserve and protect the remaining 111.  Of those that would need to be removed only 17 are "large" (20" diameter+) while over half (91) are "small" (under 10" in diameter).

Clearly, this is a LOT of trees and not an ideal situation, but what do we get in exchange?

New Trees

Any trees removed would be replaced under the County's Tree Removal formula - the current calculation would result in the planting of 250 new trees.  If space allows, they would be planted within half a mile of the project site.  While the trees planted would be small, they would all be native species (unlike many of those being removed) and would eventually, after decades of growth, result in a fuller tree canopy and improved air quality in the area.  While the County's trail guidelines recommend not planting new trees within 10' of the trail (so as to avoid tree roots destroying the trail over time) much of the area being dug up is only being disturbed in order to regrade it - those areas are prime locations for replanting and will eventually help shade the trail.  In addition, Towers Park which the trail runs through is fairly bare and would benefit from the planting of many new trees (at least in my opinion).

Increased Cycling

Building new bicycle infrastructure is vital to encouraging additional people to bike, especially off-street infrastructure like trails.  There are many folks who are interested in biking but are intimated by the idea of sharing the road with cars.  Trails and other off-street routes function like training wheels allowing new cyclists to come up to speed with urban cycling in a slow, controlled way.  The Washington Boulevard trail would be the only off-street route linking the Columbia Pike corridor with points north other than the W&OD trail in the western portion of the County.

Public Health

With increased cycling comes public health benefits.  Cycling, whether as recreation or as transportation is excellent exercise and helps combat the obesity epidemic sweeping our nation.

Decreased Carbon Footprint

With increased cycling comes environmental benefits.  Some trips that would previously have been taken by car will instead be taken by bicycle resulting in decreased emissions.  Recreational trips may displace other forms of recreation like watching TV or going to the movies which require electricity providing further emissions benefits.

Increased Park Safety

One request that frequently comes up in Neighborhood Conservation plans is for increased police presence in our parks.  Many are concerned about vandalism and crime in these often out-of-the-way areas.  Putting the Washington Boulevard trail through part of Towers Park would provide many additional "eyes on the park" throughout the day as cyclists and pedestrians pass through helping deter crime and vandalism in the park.

A New Generation of Environmentalist

Finally, the best way to ensure that our parks and natural areas are preserved in the future is by instilling a love and passion for nature in our children.  By increasing access to our parks and natural areas, and by encouraging outdoor activities like cycling and jogging, trails help bring this love and passion to people, especially young people.  Those spending all day inside staring at the TV are much less likely to care about trees and streams as they age.

The Washington Blvd trail would be especially useful in this regard as Towers Park is relatively cut-off from the rest of the neighborhood, surrounded on 3 sides by Washington Blvd and Department of Defense property.  To access it from the majority of Penrose, one must walk down South Courthouse Road to Columbia Pike, walk East down the Pike and then double back up to the park on Rolfe or Scott Street.  The trail would make for a much more direct and pleasant path for residents using the planned trail access at 6th Street.

Alternatives?  Improvements?

The Penrose Association's letter is careful to oppose the trail project "as currently designed".  The Urban Forestry Commission, however, go so far as to recommend that the trail be completely scrapped as their is a "safe alternative for bicycle and multiuse...available along South Courthouse Road"  which is absurd to anyone who has attempted to bike in the area.  South Courthouse is a relatively busy, extremely hilly street with significant speeding problems.  Biking on it is fairly common, but only by cyclists who are already quite comfortable with on-street cycling.  South Courthouse Road doesn't actually get you to Towers Park, however, to do that you have to traverse four blocks of Columbia Pike.  Cycling on-street on Columbia Pike is something done only by the bravest and most confident cyclists, and the alternative is narrow sub-standard crumbling sidewalks.  While improvements are coming to the portion of Columbia Pike, and some improvements are coming to South Courthouse Road, it will never be welcoming to beginning cyclists like an off-street trail would be.

Other suggestions I've heard include narrowing the trail, narrowing the buffer around the trail and making portions of the trail on a raised "boardwalk" to avoid damaging significant trees.  We have some existing boardwalk section of trail in Northern Virginia.  In my experience they are all dangerously slippery at least a portion of the time - many are dangerously slippery ALL the time.  Narrower trails present obvious safety concerns.  Narrowing the buffer on either side of the trail is something that seems like a reasonable place to further compromise as long as it doesn't adversely affect sight-lines on the trail.

Building a project like the Washington Boulevard trail is a balancing act.  The route that is best from a transportation perspective is likely not the best from a tree-preservation perspective; neither is probably the most cost effective route.  County Staff weigh these and many more factors when planning these projects.  To not build the project at all or to make further compromises that impede the trail's effectiveness as a transportation corridor would lose us all of the benefits outlined above.  If you feel as I do that those benefits outweigh the loss of trees, please join me in signing the online petition below:

It's about 2 miles from Columbia Pike's Town Center (the commercial zone centered around the intersection with Walter Reed Dr) to the Pentagon City Metro, a trip that should only take about 10 minutes by bicycle.  Cyclists on this route are a rare sight, however, due to traffic conditions and substandard infrastructure along the way.  Improvements are coming over the next few years; they won't bring cycling nirvana, and they won't come overnight, but overall they represent a significant improvement in the cycling experience between Columbia Pike, Pentagon City and Crystal City.

Current Conditions

Cycling on-street on Columbia Pike is quite harrowing for any but the most confident cyclists.  Traffic volumes are heavy; when not stopped at a light, traffic often moves quickly, especially once you get East of South Courthouse Rd.  Cyclists traveling during morning rush have the added joy of needing to ride in the left lane for a while due the the right lane of Columbia Pike becoming a turn lane during morning rush as it approaches the Washington Blvd bridge.  Once you're past Washington Blvd traffic volumes thin out a bit, but you're heading uphill to the Navy Annex and what traffic is coming is likely paying little head to the 25 mph speed limit.  Once you crest the hill, the downhill toward Joyce makes for a pleasant descent, helping you keep up with oncoming traffic.  Joyce Street heading under I-395 is, if anything, worse than most of Columbia Pike - wide lanes and a freeway like appearance cause cars to exceed the already inexplicably high 35 mph speed limit.  To make things worse, the sidewalk isn't even a reasonable alternative to any of this.  The sidewalks along most of Columbia Pike and along Joyce are narrow, riddled with obstacles, bumpy and frequently chock full of folks waiting for the bus.  Riding in the neighborhoods on either side of the Pike so as to avoid biking the Pike is possible but challenging (bring a map!) - street connectivity is spotty and no one road will allow you a signalized crossing of the various North/South arterials.

Once you've made it to the East side of 395 those heading for the Metro now have the option of a round-about route with bike facilities (Joyce to Hayes) or contending with a 6 lane arterial (Army Navy Dr).  Those heading for Long Bridge Park again have a round-about option (Joyce to Hayes to 12th across the bike/ped path continuing on 12th to Long Bridge Dr) or contending with Army Navy Dr.  Were it not for the one-way portion of 12th/Crystal Dr cyclists could avoid Long Bridge Dr altogether and directly access the Long Brideg Dr esplanade from the corner of 12th & Crystal Dr.  Those heading to southern Crystal City or Potomac Yard will find themselves stymied by various one-way portions of Crystal Dr and a lack of decent east/west access roads to get to it in the first place - 15th St, 18th St, 23rd St - none of these have bike facilities.  If you're just passing through you'll probably want to stick to Eads St though it's bike lanes could use some TLC.

What's Coming:

The Columbia Pike Bike Boulevards Project

This project attempts to make 9th St and 12th St the go-to option for cycling along the commercial core of the Columbia Pike corridor.  The project will include sharrows all along 9th and 12th St, various curb extensions to narrow the travel way which should help curb speeding, swapping some 2-way stops so that the cross street stops rather than 9th or 12th St, various intersection reconfigurations and the installation of HAWK signals at unsignalized intersections with major arterials (Glebe, Walter Reed, George Mason Dr).  The initial plans have been updated based on resident feedback and to coordinate with other projects.  The reconfiguration of 9th St and Walter Reed has been moved into the Walter Reed Drive Decal Fee project that is currently in-design.  9th Street will not be converted to two-way traffic until the County can come up with a solution to the neighborhood's concerns about cut-through traffic. In the interim, Eastbound bike traffic will be routed up Ivy, across 7th St and back down Irving; in reality, given the low traffic volumes there, I expect to see rampant salmoning as the preferred alternative for most cyclists over a 5 block detour.  Improvements to the trail in Doctor's Run Park have been moved to two separate projects: The lower trail from the school trail to George Mason Dr. will be improved as part of a Neighborhood Conservation project.  The upper trail from the school trail to S. Quincy St. has numerous large trees and drainage issues that also require it to be addressed in a separate project. As far as I know, no timeline or funding source has been identified for the second project.

The easy changes in this project (signage & paint) are expected to being late this Summer; curb extensions, medians, HAWK signals, and sidewalk realignments will all require a field survey.  The survey is expected to occur late this Summer as well, with design work resuming on these elements once the survey is complete; The HAWK signals will require VDOT review which will take additional time as well.

The Columbia Pike Multimodal Project

This project will essentially completely reconstruct Columbia Pike from the Fairfax line to Joyce St.  It will bring a mostly standard lane configuration to the Pike - 11' outside lane, 10' inside lane and either a left turn lane or median in the center.  From a cyclist perspective, the interesting pieces are the lack of bike lanes (due to right-of-way constraints and the strong possibility of streetcar tracks coming the pike), the potential for narrower lanes reducing traffic speeds and the addition of two segments of 10' wide sidepath - one on the East end of the Pike and one on the West.  On the west end, a 10' sidepath on the North side of the Pike will connect Jefferson St with the Four Mile Run Bridge. On the East end, a 10' sidepath on the North side of the Pike will connect Vietch Street down to Joyce St.

Detail-oriented readers may have just realized that the 10' sidepath stops exactly one block short of the 9th St bicycle boulevard. Staff have said "Current plans leave a gap between Wayne and Veitch, where the church property and retaining wall make widening the sidewalk very difficult" which I'm not sure I buy - the current plans actually show a 6' sidewalk and 5' landscaping strip on that block. It would seem the solution is as simple as removing that one block of landscaping strip; while I would mourn the loss of those trees, it would seem on balance to be worth the loss in order to avoid the interruption in bike facilities. There are many more street trees called for in the reconstructed Columbia Pike than are there now so the project as a whole would be a net gain in tree canopy. I have queried staff on this issue but haven't yet heard back on whether there is some other unknown issue that makes the solution more complicated than removing a block of landscape strip. UPDATE FROM STAFF (6/15/12): "At this point, we can officially state that it looks feasible to extend the shared facility (wider sidewalk) to S. Wayne St. but we'll need to verify this as we move forward in the planning process."

The plans are at the 50% design stage and are now being revised to address both VDOT and County staff comments and will then be resubmitted to VDOT.  The project will then proceed to final design.  That process should take about another year or so.  The County expects to begin construction starting at the Fairfax County line and moving eastward in phases.  The first phase (from the Fairfax County line to S. Frederick St.) is expected to begin in Summer or Fall of 2013.

Columbia Pike Realignment

Arlington National Cemetery is expanding; the gas station on Joyce has already been demolished to make way and the Navy Annex and Southgate Road will soon follow.  Arlington County is in negotiations to potentially realign the east end of Columbia Pike to have it meet Joyce Street much closer to I-395.  This would allow Arlington National Cemetery additional contiguous land and allow Arlington to make many potential upgrades to that area of the Pike.  An agreement has not yet been reached but it is hoped that the realignment would nicely match up with the end of the next project on Joyce St.

The Joyce St Sidewalk Project

This project runs along Joyce St as it goes under I-395, from Army Navy Dr to approximately where the old gas station was before it was demolished. Excess travel lane width is being converted into extra room for the sidewalks on both sides of the road.  Existing sidewalks are narrow, with numerous intrusions and partial obstructions and are placed close to highway guard rails and moving vehicles.  The area also lacks appropriate lighting.  The new configuration will retain the two road lanes in each direction that currently exist, but the approximately 5 ft. wide sidewalks will be replaced by 8 ft. wide sidewalks with 4 ft. of buffer zone between it and traffic.  Pedestrian scale lighting will also be added into the buffer zone.  While County Staff advised, this project is funded and managed by the Federal Highway Administration; the project was recommended in the 14th Street Bridge Environmental Impact Statement.  Cyclists who are intimidate by the traffic on Joyce should appreciate the improved sidewalks; the narrowed lanes and less freeway-like atmosphere will hopefully slow traffic for those of us who bike on-street.

Construction started at the beginning of May and is expected to take five months.

The Army Navy Drive Cycletrack

This project will consist of a "road diet" on the existing travel lanes on Army Navy Drive, including removal of the median, to provide room for a two-way dedicated bicycling facility on the south side of the right-of-way, alongside the existing sidewalk. Traffic signalization and driveway apron changes would also be included in the project.  While early in the design phase, the initial proposal is that it run from Joyce St to 12th Street providing a critical connection between the Columbia Pike corridor and Pentagon City / Crystal City.  In response to my inquiry, County staff described the project as "early in the design phase" and "without a specific timeline" but the County Manager's Proposed (not yet adopted) Capital Improvement Plan has funding for the project in the 2015, 2016 and 2017 fiscal years so I would expect that to at least be a "best guess" at this time.

Long Bridge Drive Reconstruction

Long Bridge Drive (formerly Old Jefferson David Highway) is being reconstructed between 12th Street and Boundary Channel Drive and will include Bike Lanes and smooth, brand new pavement when completed.  This project has been held up multiple times by various issues with the underground utilities but is expected to wrap up this Fall.

Crystal Drive Two-way Conversion

This is a three phase project that will eventually convert Crystal Dr from 12th Street down to Potomac Ave to two-way operation.  In the areas that are currently 1-way, there will be sharrows in the northbound lanes and a Southbound / Eastbound bike lane.  (some portions of Crystal Dr are already two-way and include bike lanes in both directions.

Phase I covers the northernmost block (Crystal Dr / 12th St / Clark St / 18th St) and will begin construction this Summer.  Phase II covers Crystal Dr between 23rd and 26th St and will begin construction late this Summer or this Fall.  Phase III will cover Crystal Dr between 26th and 27th St and will also cover 27th St itself between Route 1 and Crystal Dr.  Phase III is still in the conceptual stage and is without a firm schedule.

The Hayes Street Multimodal Project

Hayes Street by the Pentagon City Metro is already somewhat bike friendly with bike lanes stretch from Army Navy Dr all the way to Eads.  Along with many pedestrian improvements, this project will also bring green paint to those bike lanes and will double the amount of bike parking at the Metro (some of which will be covered).

Construction begins this Summer.

Combined Effects

So once all these projects are complete, how do our hypothetical trips change?  Biking along the Pike could now be accomplished on either the 9th St or 12th St bike boulevards, low-speed residential street with sharrows and signalization to cross major arterials.  Riders could then transition via a single block of sidewalk riding from the 9th St Boulevard to the 10' sidepath on the East end of the Pike. At the end of the sidepath on a realigned Columbia Pike our cyclist could then transition either to the wider sidewalk on Joyce or the narrower travel lanes which have hopefully slowed traffic there.   If our cyclist is continuing on to the metro, they can now transition to the Army Navy Dr cycletrack and then make a right onto the green bike lanes on Hayes St to park at the new covered bike parking at the Metro.  If they are heading to Long Bridge Park (perhaps to cruise the esplanade) they can take the Army Navy Dr Cycletrack over to 12th Street which now being two way allows them to access the esplanade at the corner of Crystal Dr and 12th or they can turn onto the bike lanes on Long Bridge Drive.  If they're heading to Crystal City or Potomac Yards, they can take the Army Navy Dr cycletrack to 12th St, get in the bike lane and continue all the way down to the Potomac Avenue sidepath.

Look for another post in the coming weeks with my thoughts on further improvements that can be made in Columbia Pike Corridor and its connections to Pentagon & Crystal City.

One of my long-time desires for Columbia Pike is finally becoming reality: on a beautiful Summer evening, there will soon be a purveyor of sweet, frozen desserts within walking distance.  Menchie's Frozen Yogurt has signed a lease at Penrose Square.  I've never heard of Menchie's before, but they appear to be a nation-wide chain, and their caloric content seems comparable if slightly higher than other chains in the area like Red Mango.  Menchie's sells their yogurt and toppings by weight, much like the Yogiberry in Pentagon Row.  The location is expected to open this Fall.

Thanks to Arlnow for the tip.

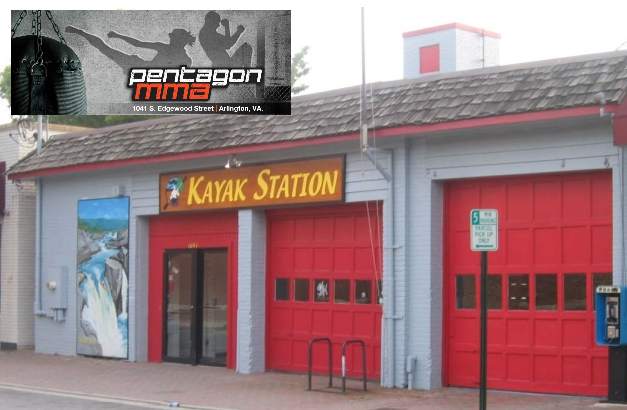

Based on a recently approved change of use permit and freshly minted Facebook page, it appears a Mixed Martial Studio is coming to the Pike.  The studio will take over the old Kayak Station space on South Edgewood next to the Rite Aid.
